Electric Scooter Series
Specification:

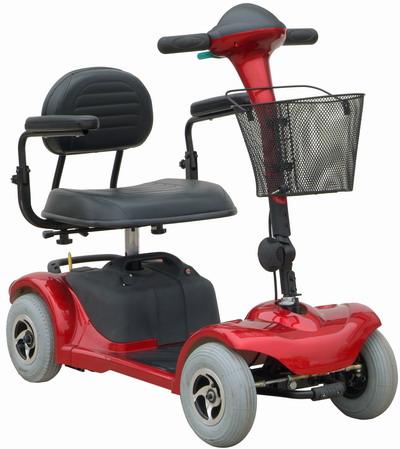

MOBILITY SCOOTER
Model LK1030FL
Conveyance:
Qty/20' FCL: 80pcs
Qty/40' FCL: 160pcs
Qty/40' HQ: 200pcs
Information below:
•
Overall dimensions:1068(L) x 510(W) x 910(H) mm
•
Weight without battery pack: 30kg(66lbs)
•
Turning radius:1100mm
•
Forward max speed: 6.8km/h
•
Backward max speed: 3.4km/h
•
Max climbing grade: 8
0
•
Range: 22km (with 2 x 20Ah batteries)
•
Ground clearance:48 mm
•
Carrying capacity: 118kg(260 lbs)
•
Standard seat: foldable
•
Seat dimensions: 405(L) x 420(W) x 440(H)mm
•
Seat material: black vinyl
•
Seat weight: 7.4kg
•
Drive system: rear-wheel drive, sealed mini transaxle, 24V DC motor
•
Braking system: electromagnetic
•
Tires: tire size 4 x 9 inch
•
Wheel hub: aluminum alloy
•
Battery type: 2 x 12V, deep-cycle lead-acid (Gel)battery
•
Battery weight 5
。
7kg (12
。
5 lbs) (each)
•
Battery rated capacity: 17Ah
（
or 20Ah
）
(optional)
•
Battery charger: 2 Amp off-board battery charger
•
Motor power: 200W
