Electric Scooter Series
Specification:

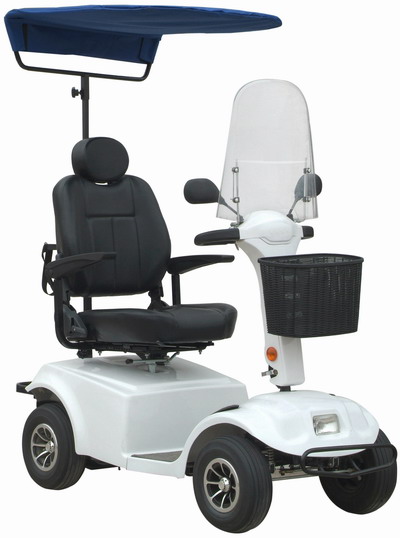

MOBILITY SCOOTER
Model GOLF-F
Conveyance:
Qty/20' FCL: 21pcs
Qty/40' FCL: 45pcs
Information below:
•
Overall dimensions:
1,825 x 760 x 1,800mm
•
Max. speed: 15km/h
•
Range: 40km (75Ah)
•
Max. load: 200kg
•
Max. climbing grade: 15
o
•
Turning radius: 2.0m
•
Motor power: 800W(Max power 1940W)
•
Charger: 110-220V (AC); 24V/5.0A
•
Battery: 12V/75Ah x 2
（
23
。
1kg x 2
）
•
Brake type: electric regenerative brake
•
Speed adjustment: step-less speed control
•
Braking distance: 2.0m (dry surface)
•
N.W:140kg(with two batteries)
